Fixture LED Beam 8x12W RGBW

Fixture not working as it should? Post it here and we'll check it out. Be precise with the fixture name as there are many with similar names.
Dj Mell 26
Posts: 17
Joined: Fri Feb 11, 2022 2:22 am
Location: France

Fixture LED Beam 8x12W RGBW

Post by Dj Mell 26 »

Hi,

Good morning,

My computer being H.S, I cannot create the Beam 8x12W RGBW LED bar fixture, so I am writing to you from my mobile.

Is it possible to create the fixture in 38ch and 9ch?

Thanks in advance !

Sincerely, Patrick - SC

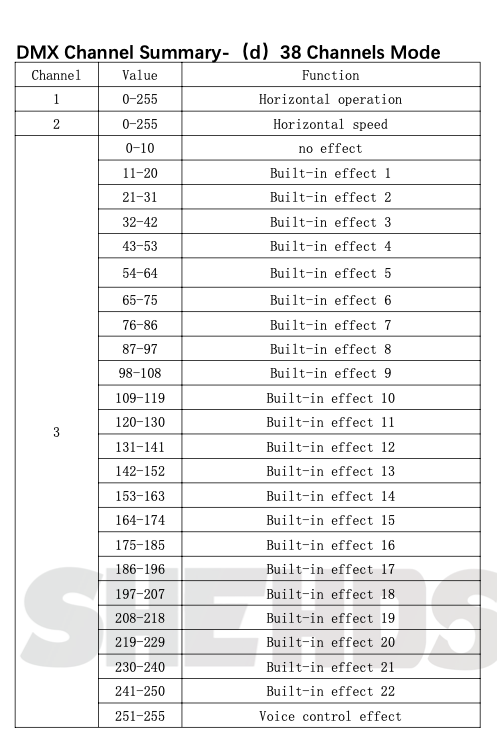

LED Beam 8x12W RGBW - 1.png
LED Beam 8x12W RGBW - 1.png (99.3 KiB) Viewed 8457 times

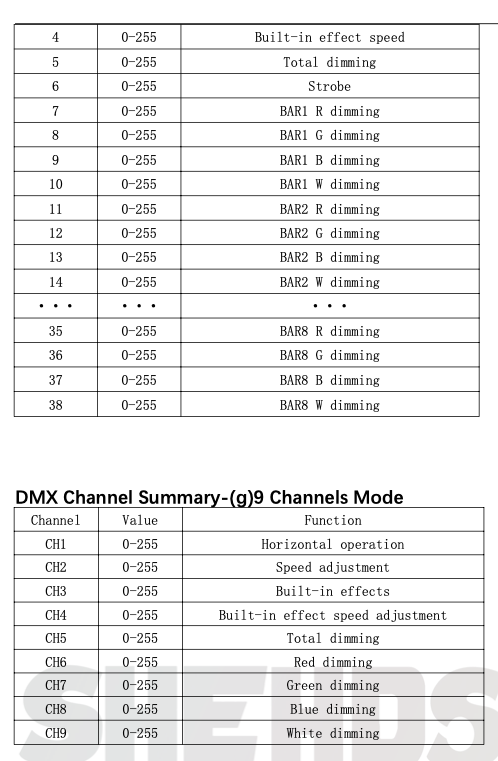

LED Beam 8x12W RGBW - suite.png
LED Beam 8x12W RGBW - suite.png (95 KiB) Viewed 8456 times
axell
Posts: 415
Joined: Sat Feb 12, 2022 8:52 am

Re: Fixture LED Beam 8x12W RGBW

Post by axell »

If using9Ch mode you have the same color on all LEDs.
When using the 38Ch mode you can have different colors on different LEDS when turning up the PHASE encoder in ColorFX. At 0% you have the same colors on all LEDS (like in 9Ch mode). If you crank up the PHASE encoder you will notice more and more different colors show up on the LEDs.

(just make sure you setup the LED Bar with the same Channel Mode as the one you load into Wolfmix Mode 1 = 9Ch / Mode 2 = 38Ch)
Attachments
SHEHDS 8x12 RGBW LED Bar 9Ch_38Ch.ssl2
(31.12 KiB) Downloaded 988 times
Dj Mell 26
Posts: 17
Joined: Fri Feb 11, 2022 2:22 am
Location: France

Re: Fixture LED Beam 8x12W RGBW

Post by Dj Mell 26 »

Thank you very much Axell !

I also prefer the much more complete 38ch mode, with more possibilities for color combinations!
